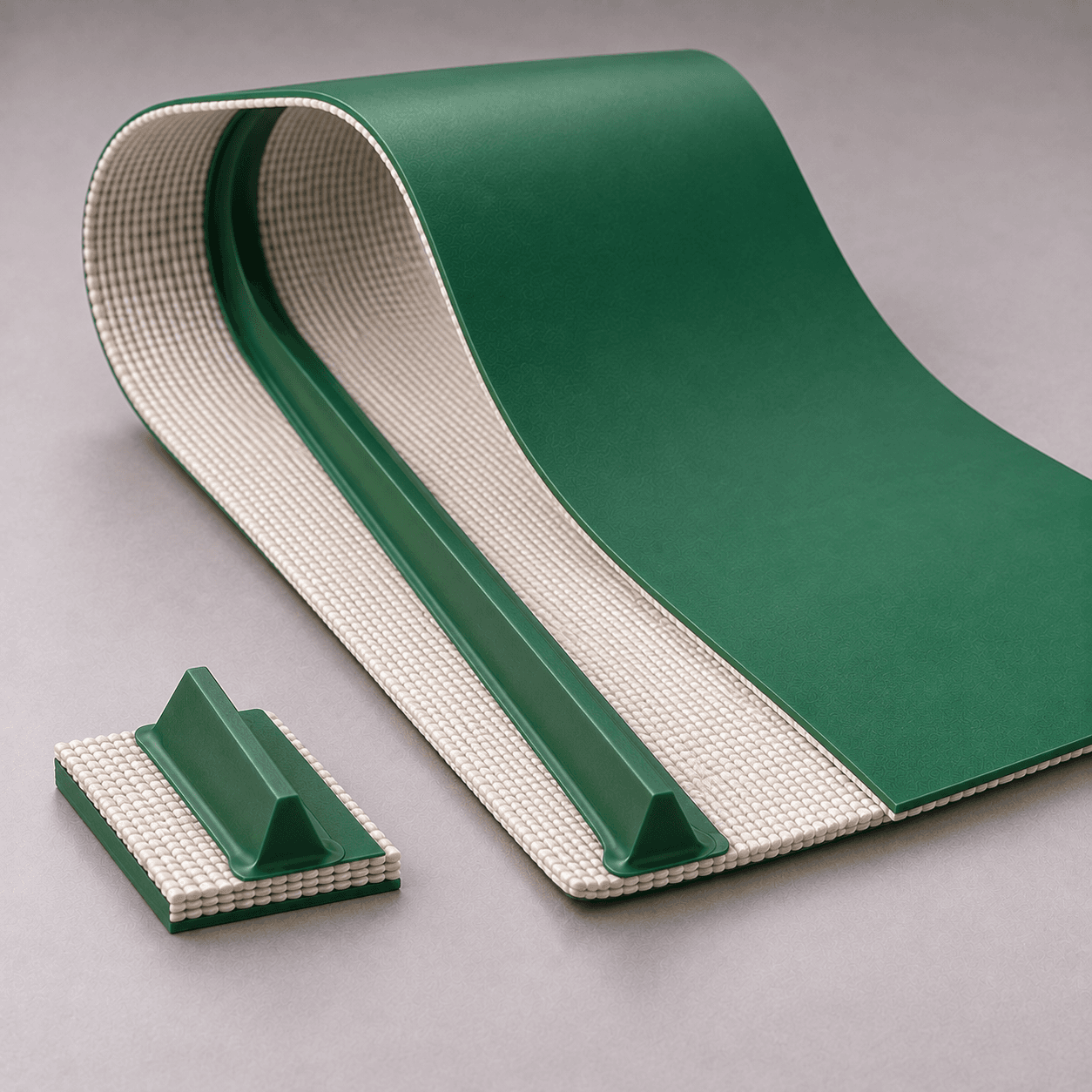

Product illustration — generated schematic for reference only; not an INJ factory photo. Dimensions, materials, and certifications are confirmed per project.
Guided Conveyor Belts
Underside Longitudinal V-Guide
Guided conveyor belts use an underside longitudinal V-guide that runs in the belt travel direction for tracking assistance.
Category
Light Conveyor Belts
Series
Cleated & Guided Belts
Product Overview
- • Whether this series matches the machine family you are sourcing for.
- • What structure or profile data should be checked before RFQ.
- • When to stop browsing and send the project for technical review.
Ready for technical review
Send marking photos, pulley sizes, speed/load, and annual demand. We will reply with a practical replacement or sourcing path.
- • Belt marking or sample photo
- • Pulley diameter and tooth/profile data
- • Target quantity and delivery expectation
Characteristics
- Longitudinal V-guide on the underside, aligned with belt travel direction
- Tracking assistance when matched to the pulley or bed groove
- Confirm guide size, centerline position, and groove match before production
Overview
Guided conveyor belts use an underside longitudinal V-guide that runs in the belt travel direction for tracking assistance.
This is a tracking guide on the belt underside — not a transverse cleat, V-belt, timing belt, or sidewall.
Standards & Dimensions
Representative values illustrate construction options. Final selection remains product-code and application-specific.
Production Range
Selection notes
Confirm material, thickness, ply count, top surface, bottom construction, width, length, splice, and accessories.
For RFQ, send top, bottom, and cut-edge photographs together with operating conditions and pulley diameter.
Proceed with RFQ
When you submit the inquiry, keep the model or section reference shown on this page, then add pulley data, machine type, length basis, and quantity target.
For OEM/private label inquiries, please send belt model, size, quantity, target brand requirement and packing preference.
